![VE1-YT](https://velvetcustomlighting.com/wp-content/uploads/2024/03/VE1-YT.jpg)
Yoke
Ref: VE1-YT
Tubular yoke kit without spigot for VE1
Highlights
Available models
Choose your fixture

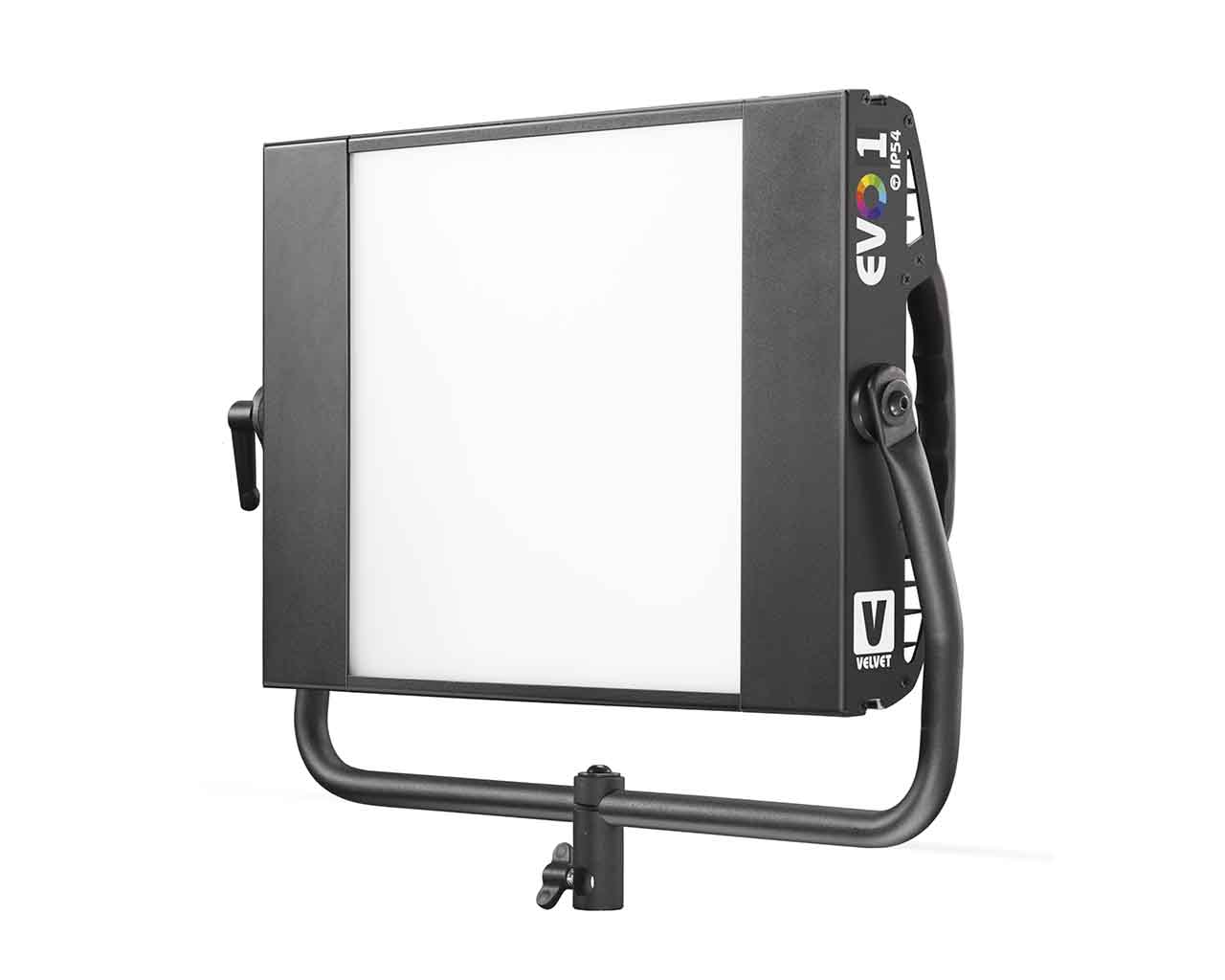

EVO 1 IP54

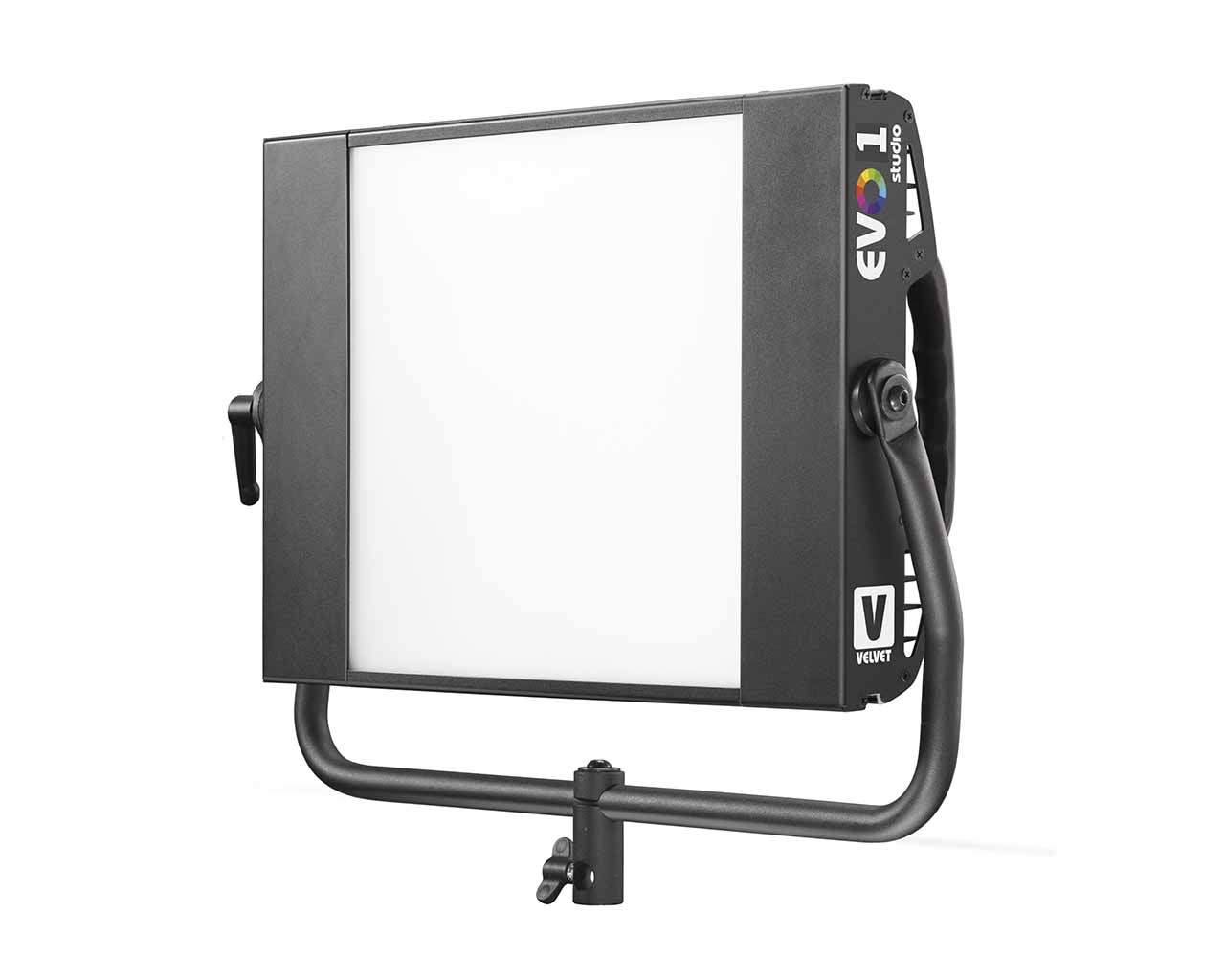

EVO 1 Studio
EVO 2 IP54
EVO 2 Studio
EVO 2×2 IP54
EVO 2×2 Studio
EVO 1 IP54
EVO 1 Studio
EVO 2 IP54
EVO 2 Studio
EVO 2×2 IP54
EVO 2×2 Studio
Color temperature
Continuously adjustable from 2500K to 10000K
Green-magenta
Continuously adjustable from full minusgreen to full plusgreen
Color spectrum
Full color spectrum R+G+B+W+CW with hue, saturation, and base color temperature control
Color control modes
CCT, HSI, RGB, Gels and Effects base Kelvin white light can be set combined with any color
Light intensity
Dimmable 0 to 100, smooth and flicker-free

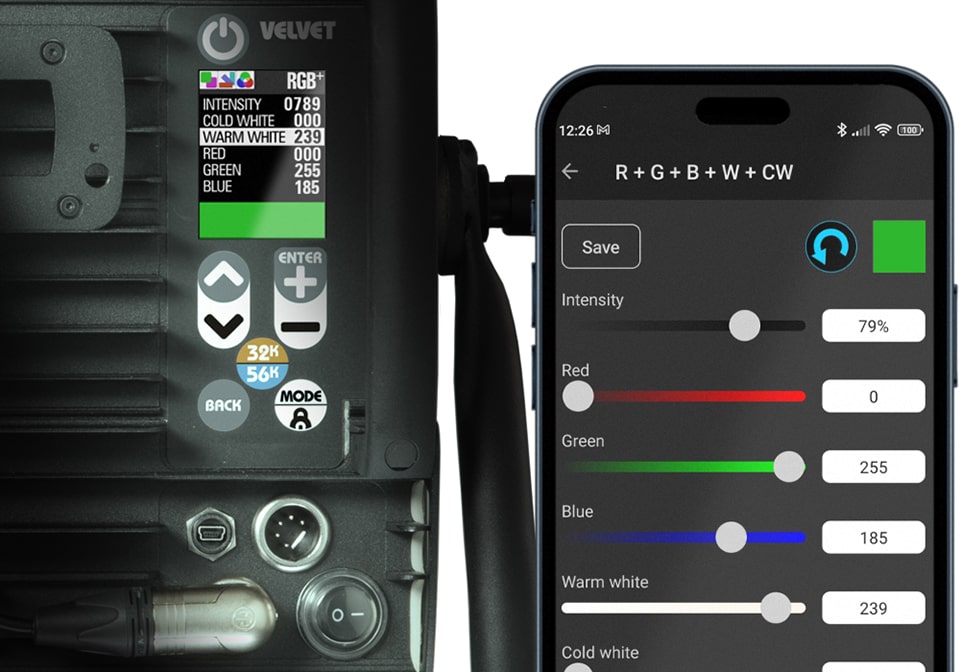

Local control
Shock resistant buttons and color display
Wire control
DMX-RDM with XLR-5 in connector
Wireless control
DMX-RDM with LumenRadio, CRMX Wi-Fi Art-Net +VELVET Goya App, Bluetooth
Tlci index
96 at 3174K and 97 at 5558K

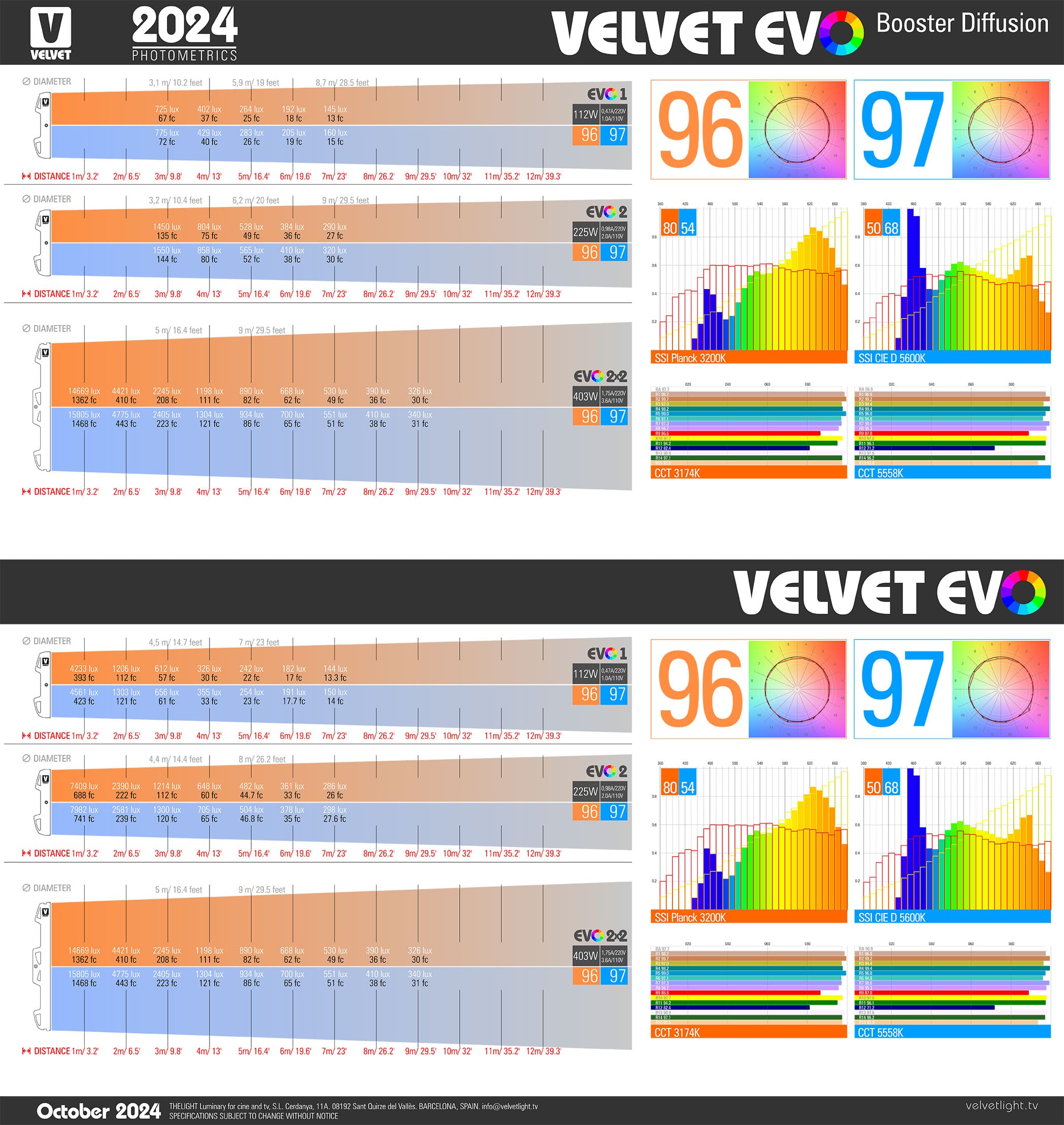

Photometrics
4561 lux / 423 fc at 1m / 3 feet
656 lux / 61 fc at 3m / 10 feet
Beam angle
115º
Dimensions
453x318x92mm / 17.8x12.5x3.6 inches
Weight
4.4 kg / 9.7 lbs (panel)
4.9 kg / 10.8 lbs (panel + yoke)
Power draw
112W (0.47A at 220VAC — 1.0A at 110VAC)
Power supply
12-35V DC (XLR3). VLock Gold mount battery
90-264V AC 50/60Hz
Led rated life (L70)
More than 50.000 hours
Power connection
Neutrik PowerCon TRUE1 TOP In connector
Ouput frequency
2000 fps
Operation temperature
From -20ºC to +40ºC

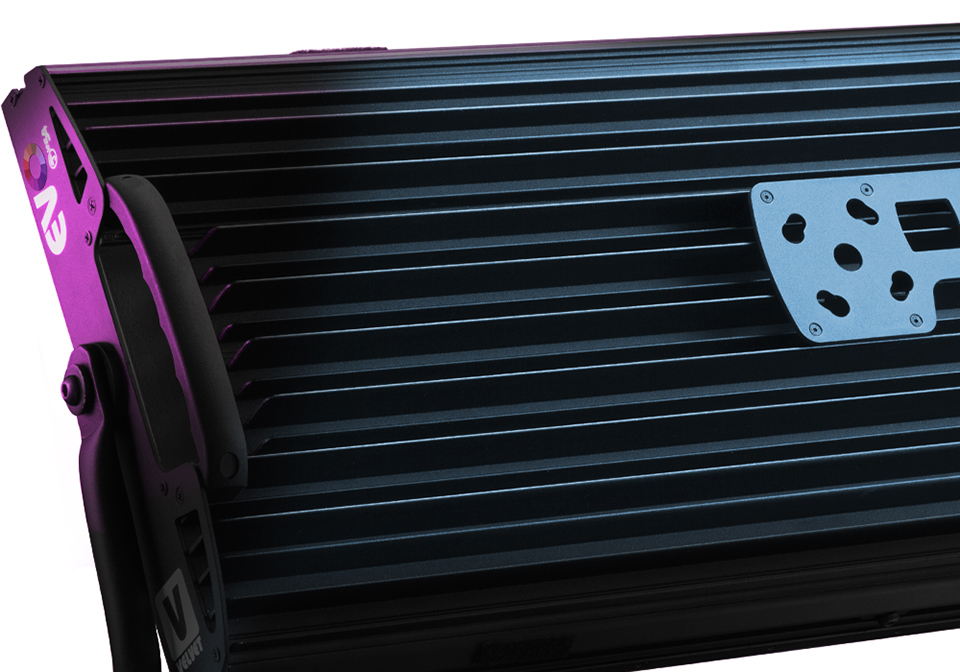

Cooling
Silent and fan-free pasive cooling

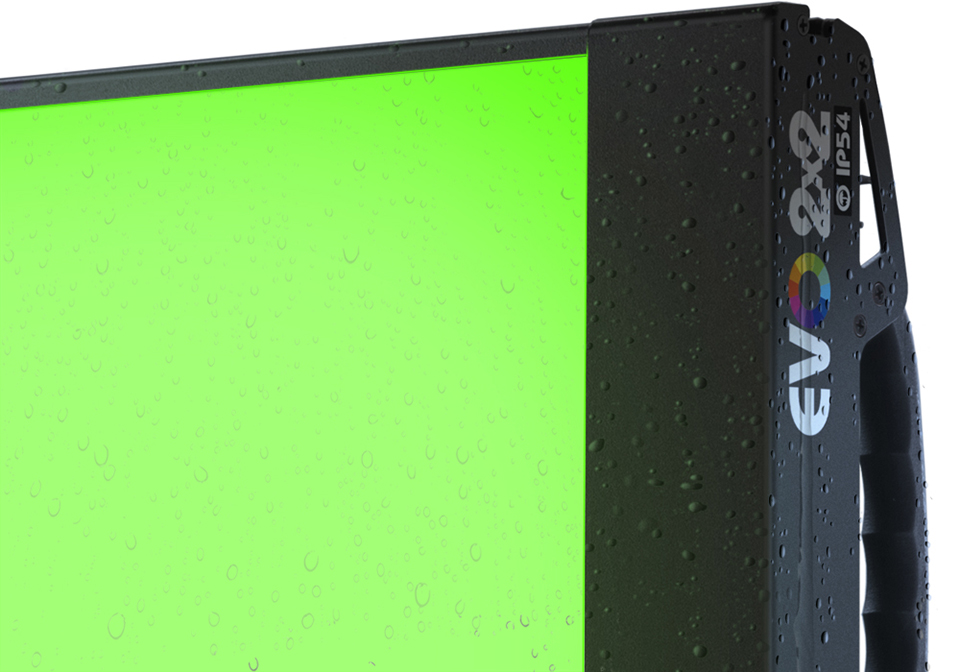

Protection
IP54 weatherproof, indoor or outdoor use
Velvet led technology
Selected BIN LED core unit + optic diffuser + CPU software control
Rigging options
Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, center ball-head mount, multiple 1/4”- 20 rigging points, pole operated yoke
Quick mounting accessories
Foldable SnapBag, foldable Snapgrid, removable barn doors, cordura case, hard case

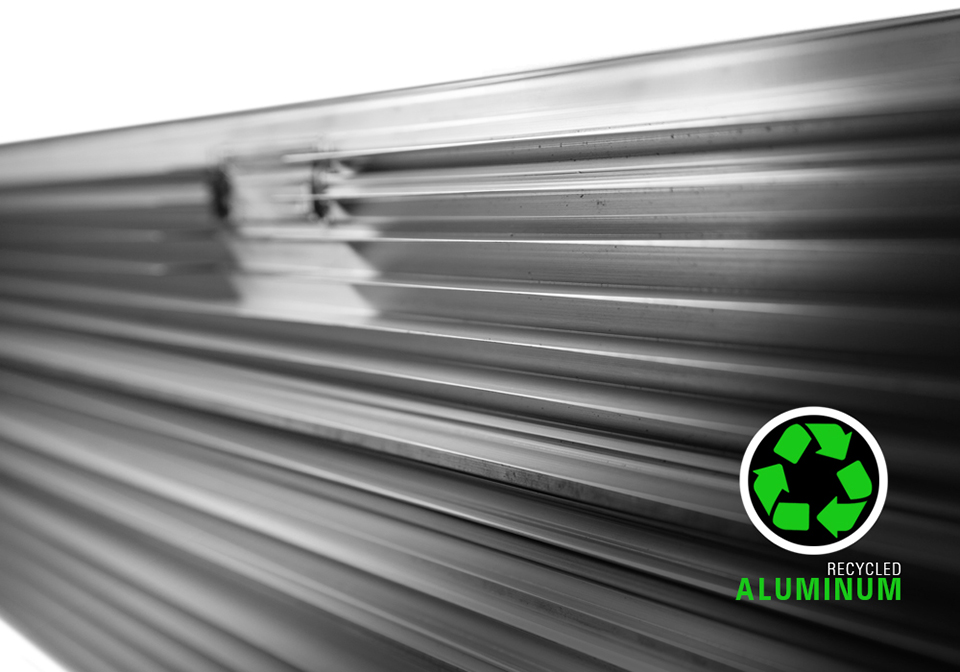

Construction & finish
Fixture and yoke made of black powdercoated extruded and sheet aluminum
Yoke
Ref: VE1-YT
Tubular yoke kit without spigot for VE1

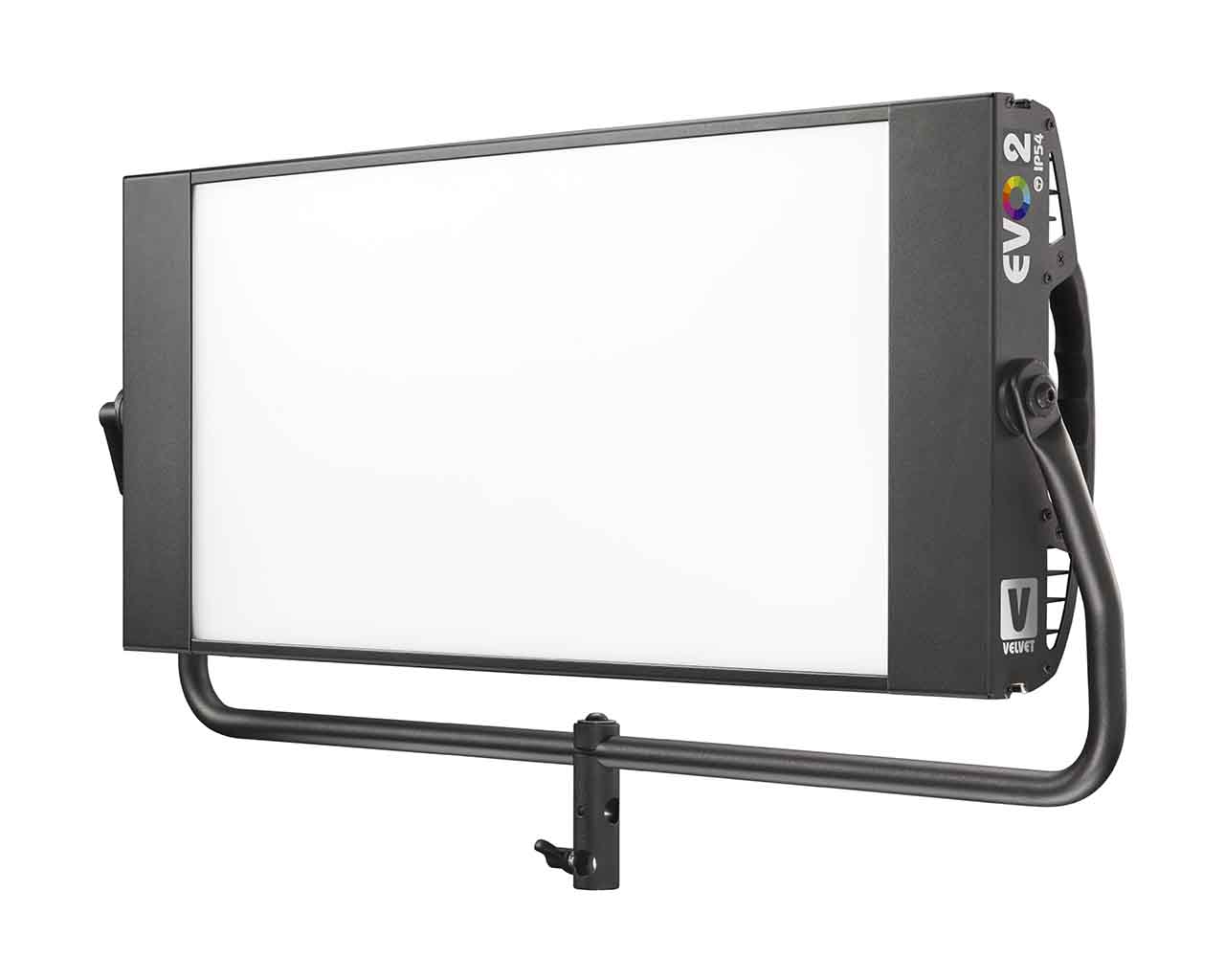

Yoke
Ref: VE2-YT
Tubular yoke kit without spigot for VE2

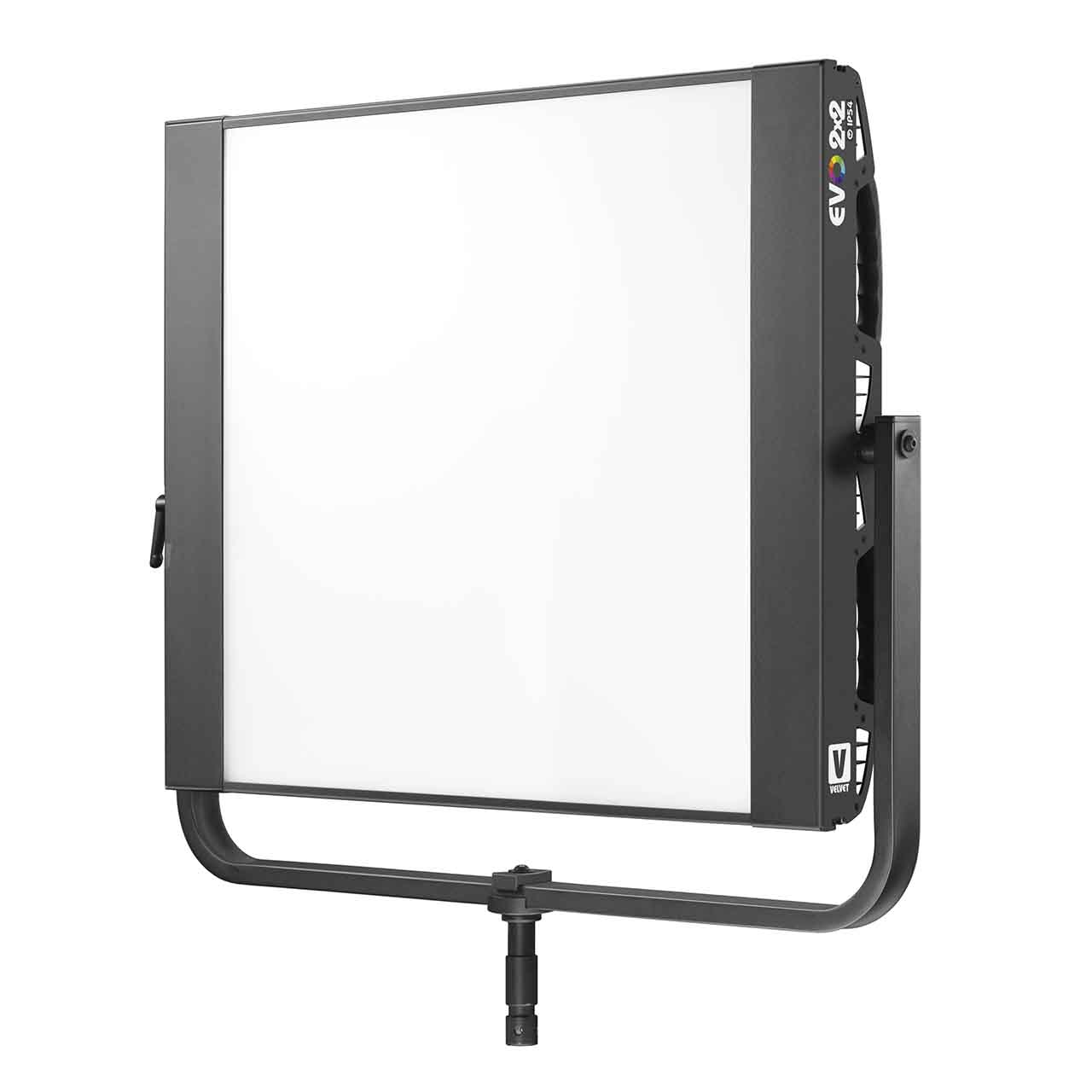

Yoke
Ref: VE2X2-YT
Tubular yoke kit without spigot for VE2X2
Pole Operated
Ref: VE1-YPO
Pole Operated yoke kit for VE1
Pole Operated
Ref: VE2-YPO
Pole Operated yoke kit for VE2
Pole Operated
Ref: VE2X2-YPO
Pole Operated yoke kit for VE2X2
Center ball head
Ref: VM-QLS
Center ball head on mount VM and VE1
Center ball head
Ref: VE-QLS
Center ball head mount for VE2
Junior pin
Ref: EV-EURO28TK
Kit Euro28mm. junior pin for tube yoke
Compact junior/ baby
Ref: THE-2816CTUBEK
KIT Compact 28mm. junior pin & 16mm baby receiver combined for VELVET tubular yoke
EV-2816TK
Ref: EV-2816TK
Kit 28mm Junior pin & 16mm Baby receiver with multi-mount for EVO1 and 2 tube yoke
Junior pin
Ref: EV-EURO28RYK
Kit Euro28mm. junior pin for rectangular tube yoke
C-clamp
Ref: V-CCLAMPK
C-clamp to hung lights
Power supply
Ref: VEIP-PSU150WNC
150W weatherproof AC power supply + mount for EVO 1 IP54
Power supply
Ref: VEIP-PSU320WNC
320W weatherproof AC power supply + mount for EVO 2 IP54

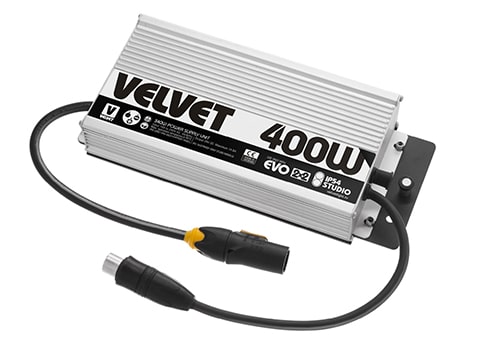

Power supply
Ref: VEIP-PSU400WNC
AC power supply for VE2X2CIP54
Vlock adapter plate
Ref: VM-VLOCKIP54
Vlock adapter plate XLR3 IP54 for VM and VE1
Vlock adapter plate
Ref: VM-VLOCKA
Vlock adapter plate XLR3 angle for VM and VE1
Battery adapter
Ref: VM-GOLDA
Gold battery adapter plate XLR3 angle for VM and VE1

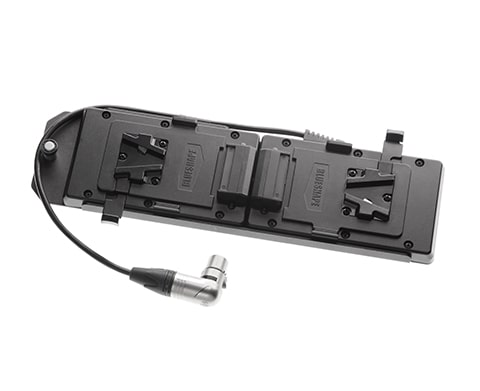

Double battery adapters
Ref: VE-DVLOCK
Double Vlock battery adapter on EVO style plate with angled connector.

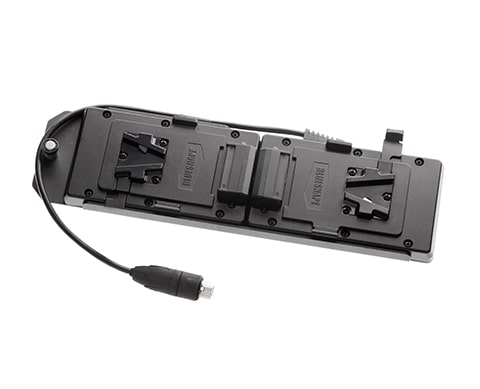

Double battery adapters
Ref: VE-DVLOCKIP
Double Vlock battery adapter on EVO style plate with IP67 connector.

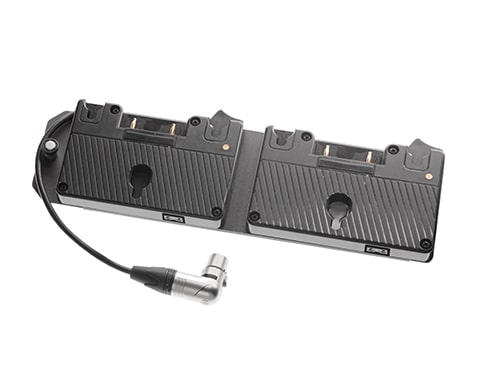

Battery addapter
Ref: VE-DGOLD
Double Gold battery adapter on EVO style plate with angled connector.

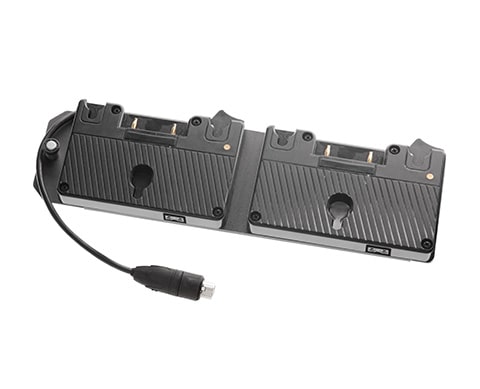

Double battery adapters
Ref: VE-DGOLDIP
Double Gold battery adapter with IP67 XLR3 connector on EVO type plate

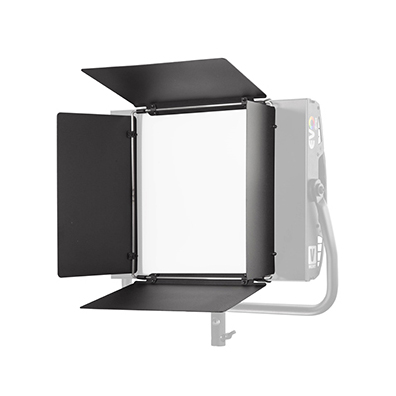

Barndoors
Ref: VE1-RB
Barndoors for VE1
Barndoors
Ref: VE2-RB
Barndoors for VE2
Barndoors
Ref: VE2X2-RB
Barndoors for VE2X2

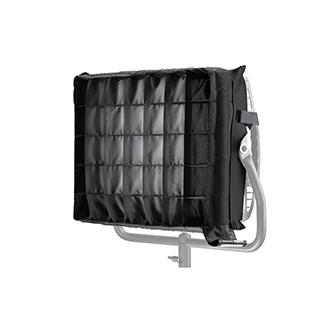

Snapgrid
Ref: VE1-SG
DopChoice 40º foldable Snapgrid for VE1
Snapgrid
Ref: VE2-SG
DopChoice 40º foldable Snapgrid for VE2
Snapgrid
Ref: VE2X2-SG
DopChoice 40º foldable Snapgrid for VE2X2

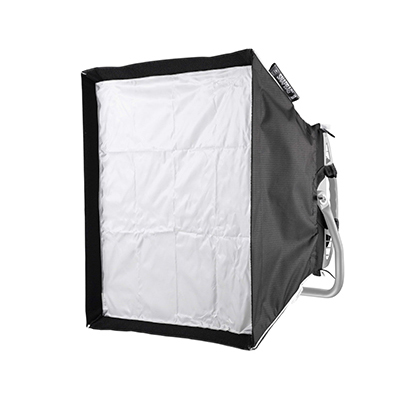

Snapbag
Ref: VE1-SB
DopChoice Snapbag Softbox for VE1
Snapbag
Ref: VE2-SB
DopChoice Snapbag Softbox for VE2
Snapbag
Ref: VE2X2-SB
DopChoice Snapbag Softbox for VE2X2

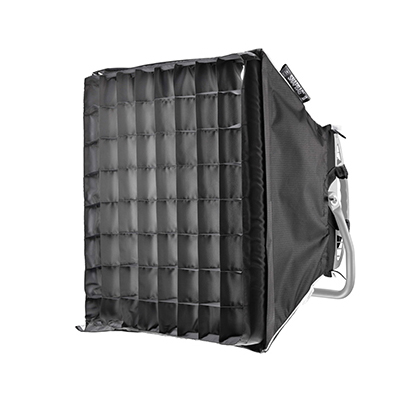

Snapgrid
Ref: VE1-SGXSB
DopChoice 40º Snapgrid 60x60cm. for Snapbag VE1
Snapgrid
Ref: VE2-SGXSB
DopChoice 40º Snapgrid 60x60cm. For Snapbag for VE2
Snapgrid
Ref: VE2X2-SGXSB
DopChoice 40º Snapgrid 100x100cm. for Snapbag for VE2X2

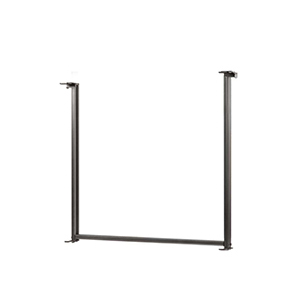

Slots kit
Ref: VE1-SLOTKIT
Slots kit for VE1

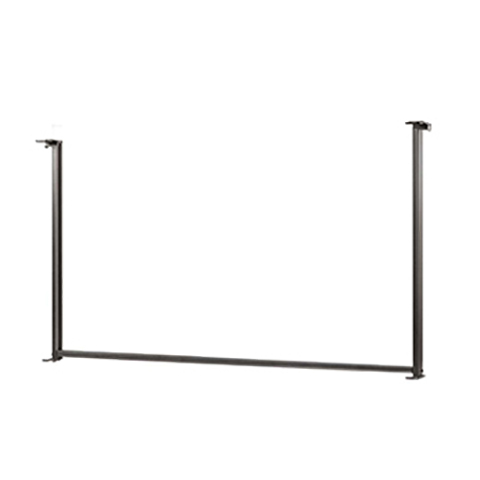

Slots kit
Ref: VE2-SLOTKIT
Slots kit for VE2

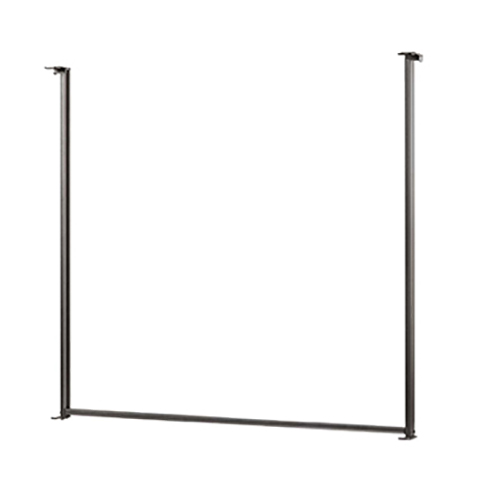

Slots kit
Ref: VE2X2-SLOTKIT
Slots kit for VE2X2

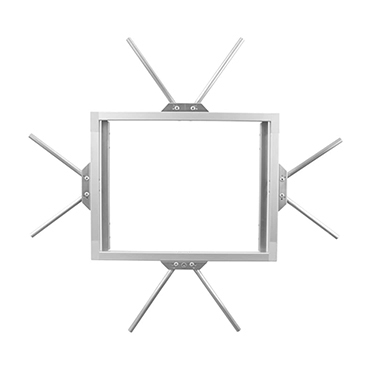

Rabbit ears 1x1
Ref: 1X1-RABBITSQ
DopChoice Rabbit Ears aluminum frame for 1X1 panels

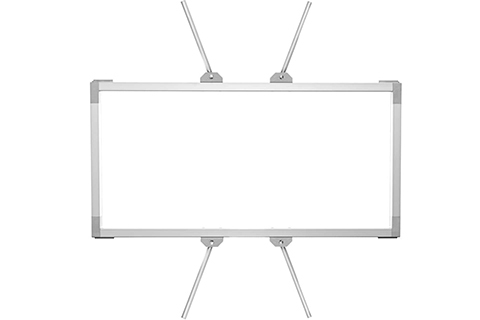

Rabbit ears 2x1
Ref: 2X1-RABBITREC
DopChoice Rabbit Ears Rectangular aluminum frame for 2X1 panels

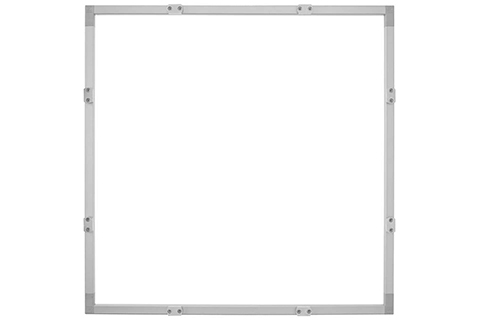

Rabbit ears 2x2
Ref: 2X2-RABBITSQ
DopChoice Rabbit Ears frame for VL2X2 and VP2X2

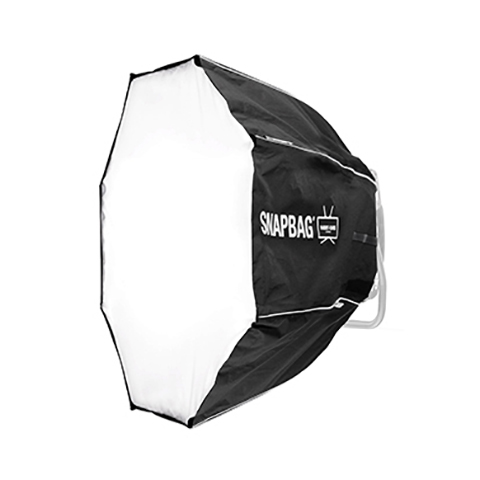

Snapbag for Rabbit ears
Ref: OCTA-SBR03
OCTA 3 foldable Snapbag 0,9m. diameter for Rabbit Ears mount

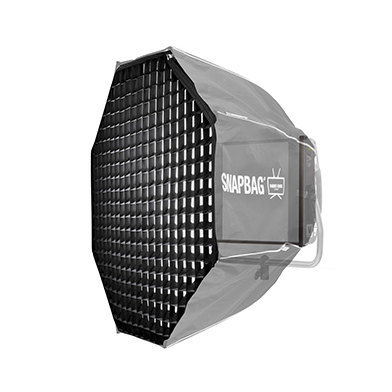

Snapgrid
Ref: OCTA3-SG
DopChoice 40º Snapgrid for Octa 3

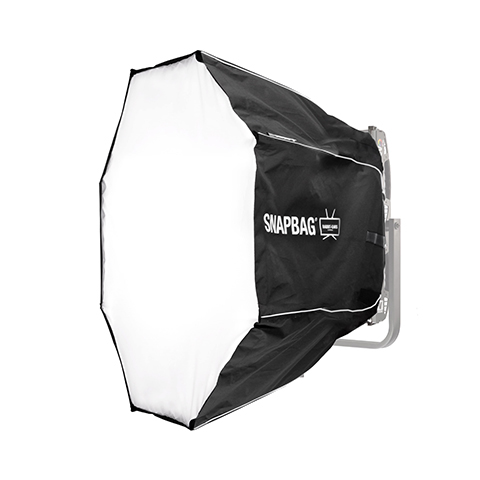

Snapbag for Rabbit ears
Ref: OCTA-SBR05
OCTA 5 foldable Snapbag 1,5m. diameter for Rabbit Ears mount

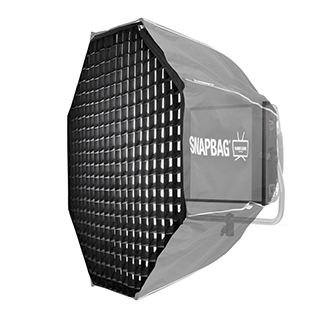

Snapgrid
Ref: OCTA5-SG
DopChoice 40º Snapgrid for Octa 5

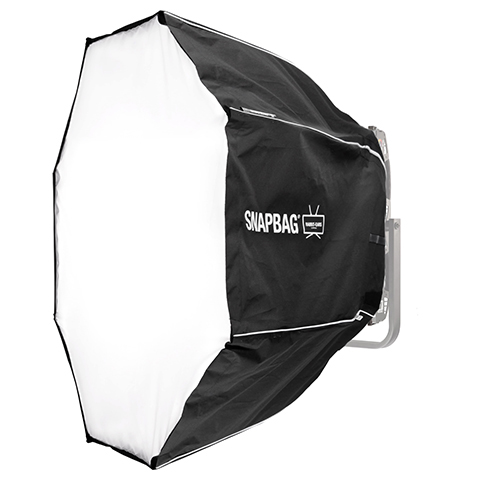

Snapbag for Rabbit ears
Ref: OCTA-SBR07
OCTA 7 foldable Snapbag 2,1m. diameter for Rabbit Ears mount

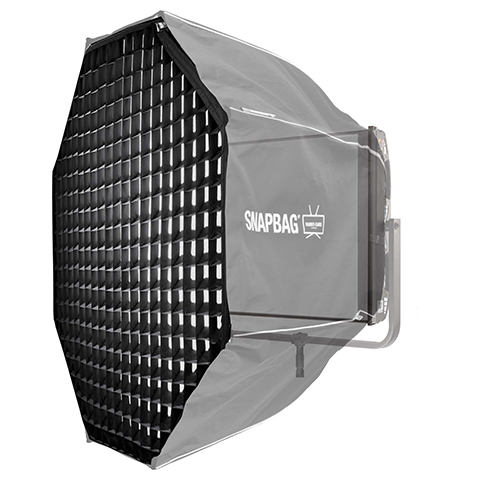

Snapgrid
Ref: OCTA7-SG
DopChoice 40º Snapgrid for Octa 7

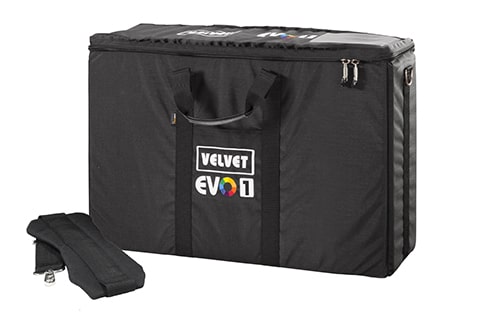

Bag
Ref: VE1-BAG
Soft bag for 1x VE1

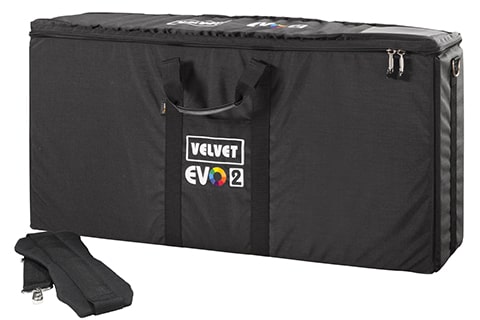

Bag
Ref: VE2-BAG
Soft bag for 1x VE2 kit
Flight case
Ref: VE2-CASE
Flight case for VE2
Flight case
Ref: VE2X2-CASE
Flight case for VE2X2
Schuko AC power cable
Ref: ACC3.5M-TRUE1
Schuko AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
UK AC power cable
Ref: ACC3.5M-TRUE1UK
UK AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
American AC power cable
Ref: ACC3.5M-TRUE1A
American AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
Bare ends AC Power cable
Ref: ACC3.5M-TRUE1BE
Bare ends AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
DC extension cable
Ref: CAB-XLR3DCC4.5M
DC extension cable 4,5m. / 15 ft. XLR3
DMX daisy-chain cable
Ref: DMX-DMX2M
DMX daisy-chain cable 2m. / 6.5ft.
DMX daisy-chain cable
Ref: DMX-DMX3M
DMX daisy-chain cable 3m. / 10ft.
DMX daisy-chain cable
Ref: DMX-DMX6M
DMX daisy-chain cable 6m. / 20ft.
DMX daisy-chain cable
Ref: DMX-DMX10M
DMX daisy-chain cable 10m. / 33ft.
DMX daisy-chain cable
Ref: DMX-DMX20M
DMX daisy- chain cable 20m. / 66 ft.
DMX splitter
Ref: THE-DMXINOUT
DMX aerial splitter In&Out
Wi-Fi router
Ref: VE-ROUTER
VELVET Wi-Fi router to remotely control Evo
