![VYST-YK](https://velvetcustomlighting.com/wp-content/uploads/2024/03/VYST-YK.jpg)
Yoke
Ref: VYST-YK
Flat yoke without spigot for VY
Highlights
Available models

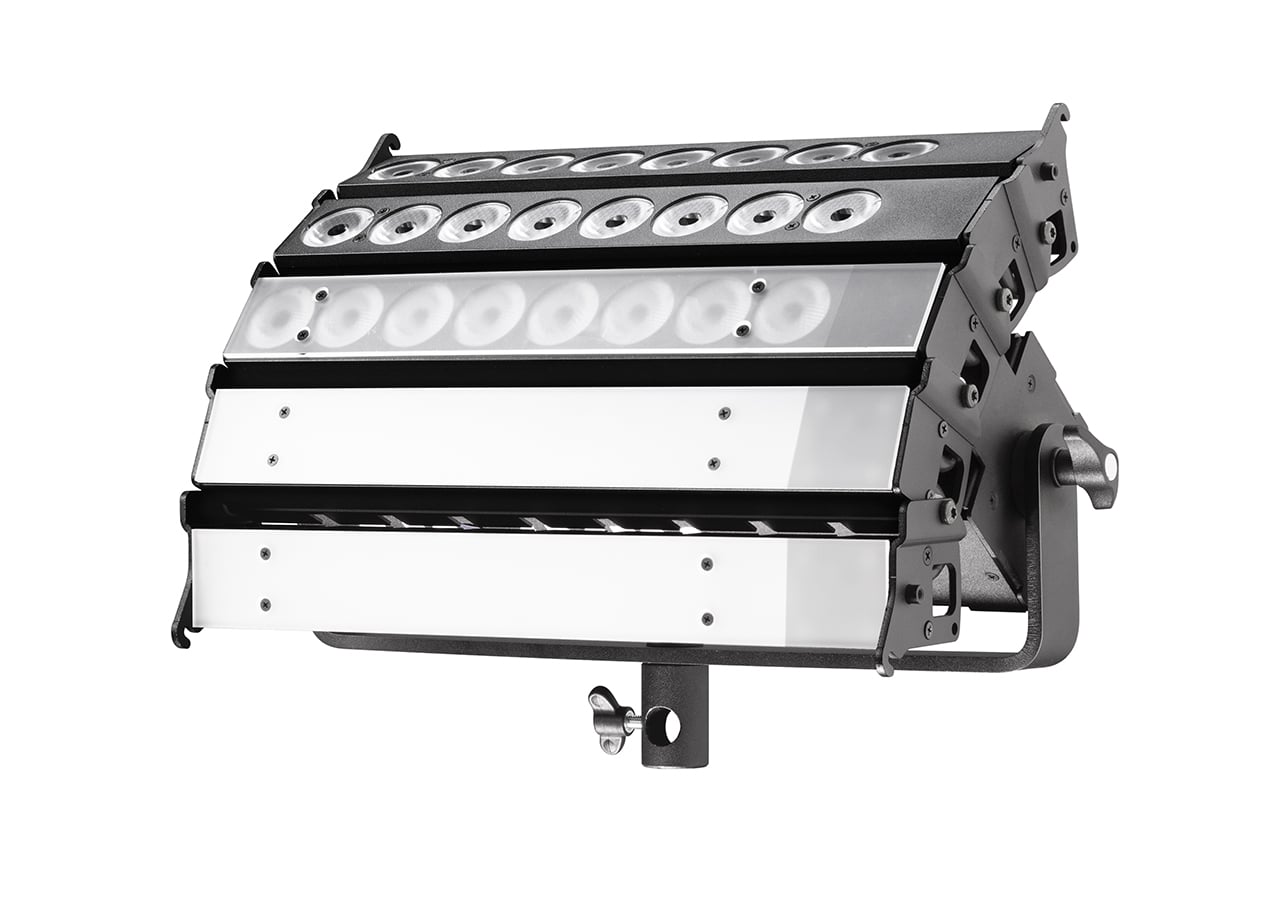

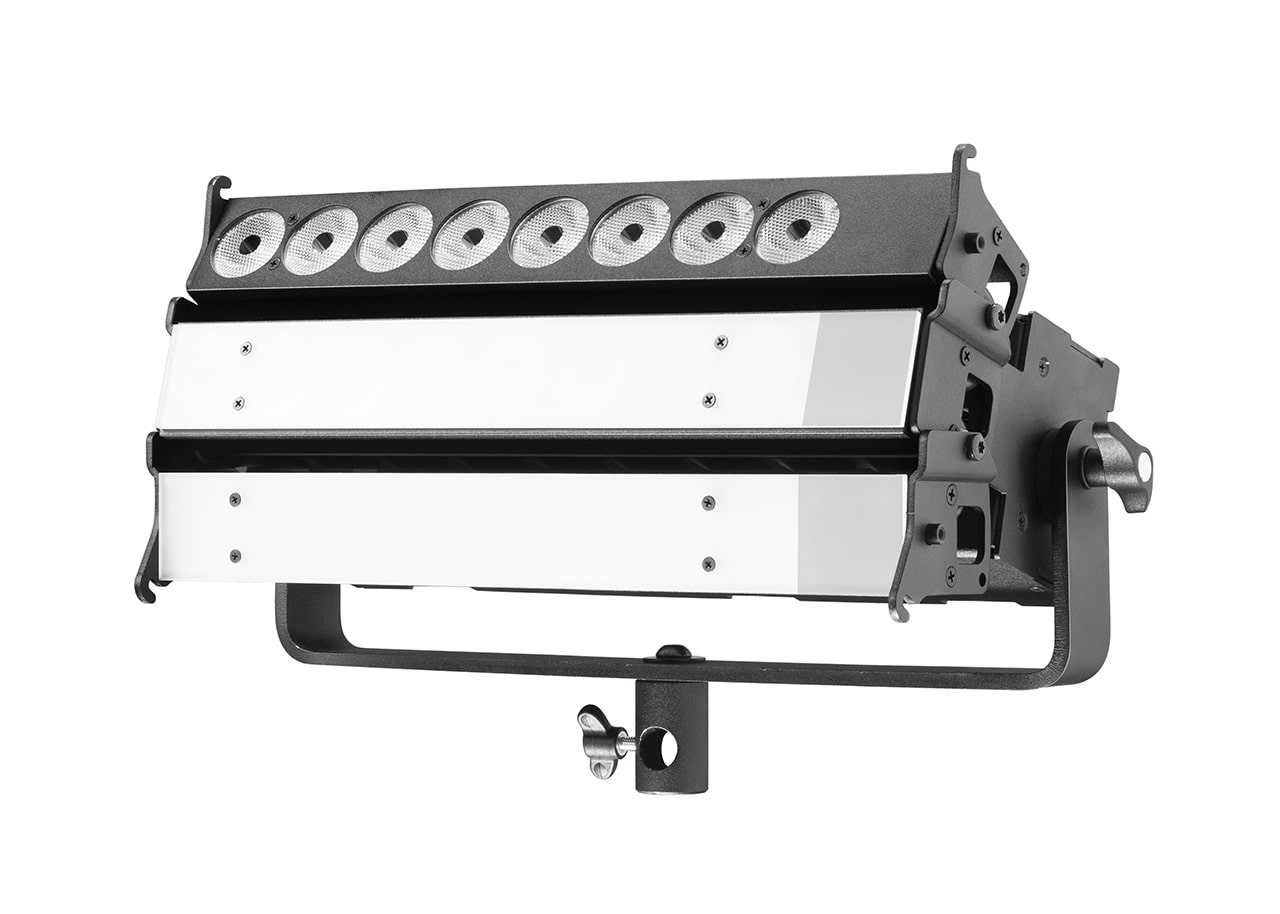

Choose your fixture

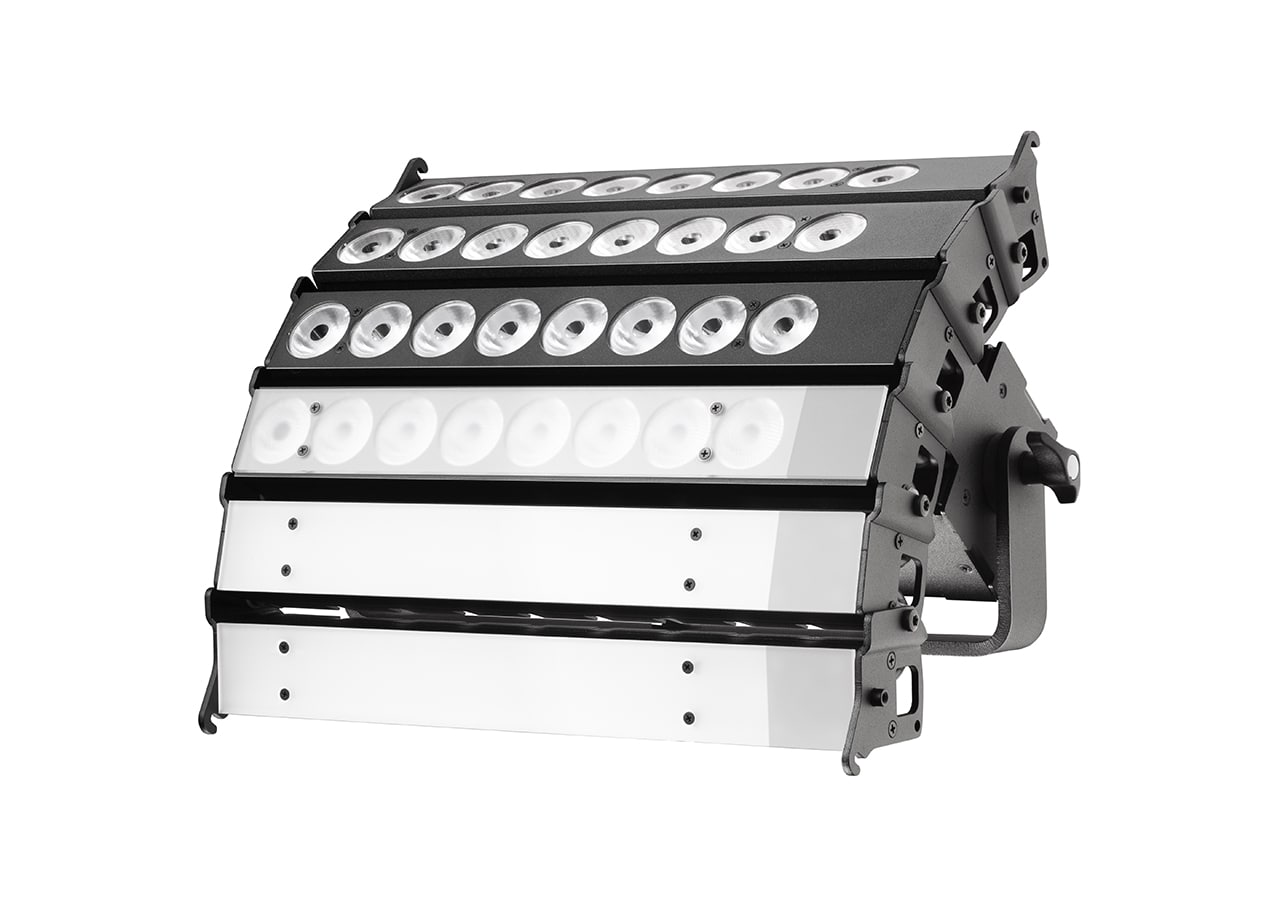

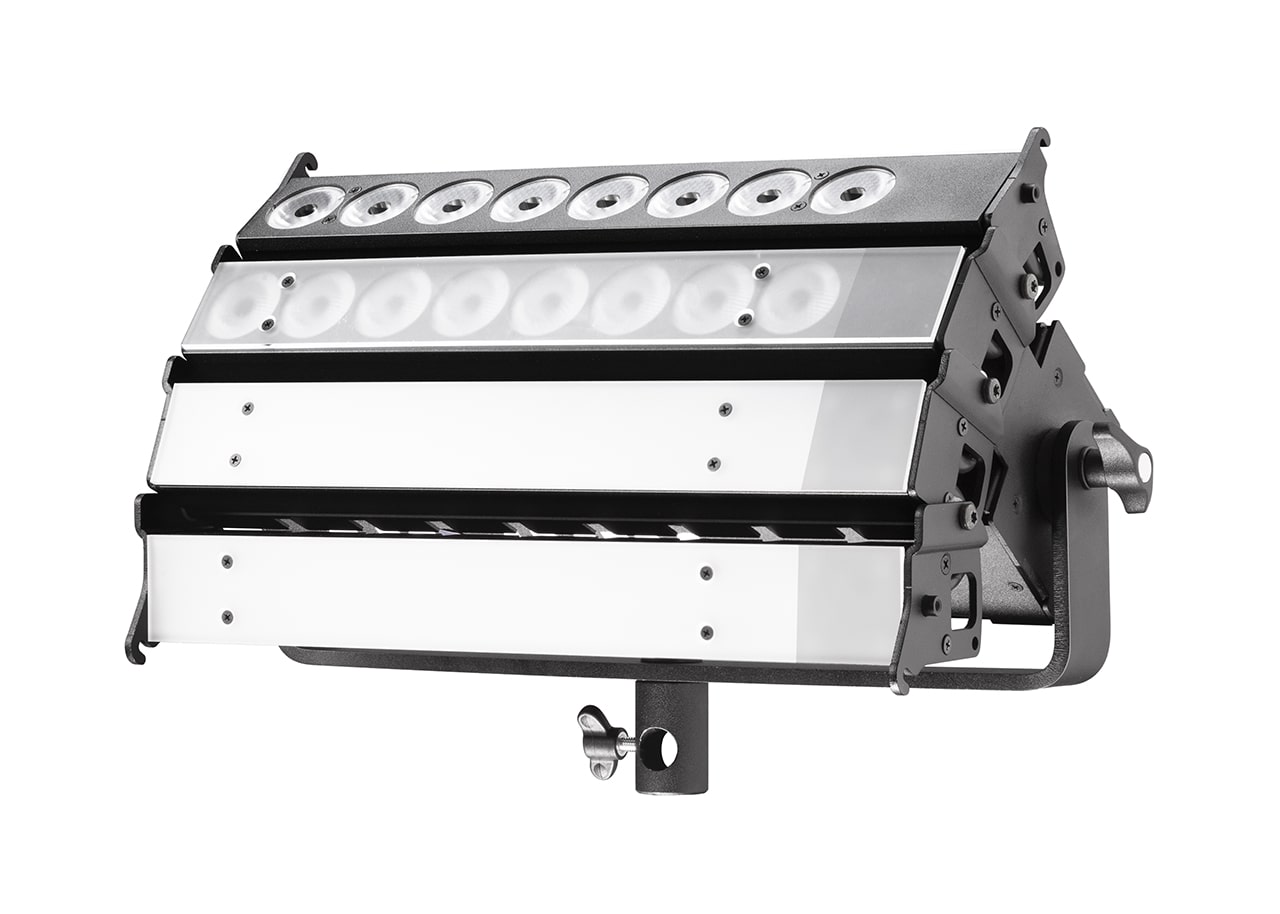

Cyc 3
Cyc 4
Cyc 5
Cyc 6
Cyc 3
Cyc 4
Cyc 5
Cyc 6
Number of light engines
3
Color temperature
Continuously adjustable from 2500K to 10000K
Light intensity
Dimmable 0 to 100, smooth and flicker-free
Green-magenta
Continuously adjustable (full Plusgreen to full Minusgreen)

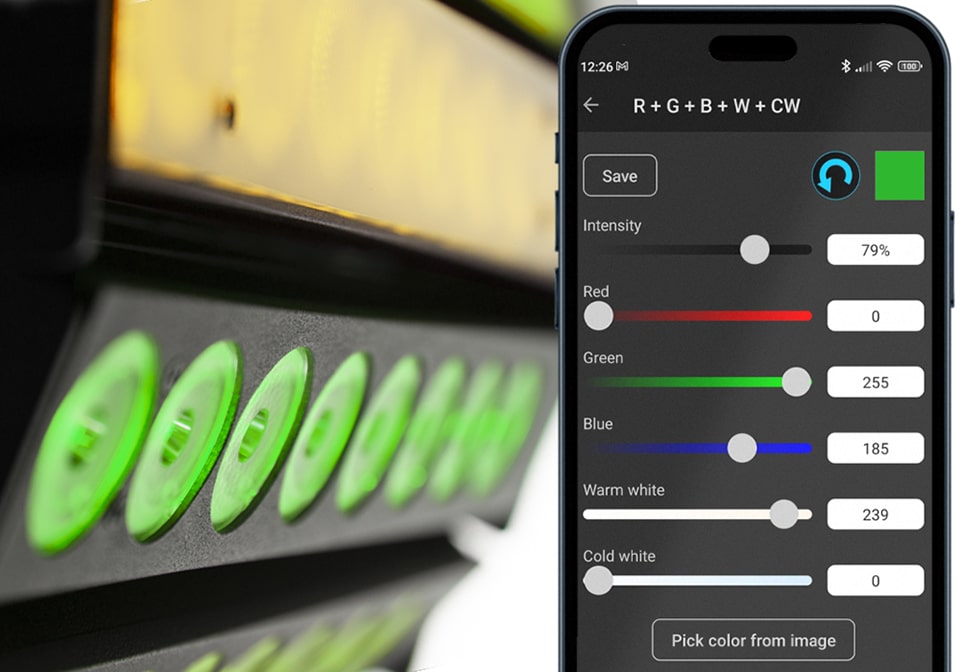

Color control modes
CCT, HSI, RGB, Gels and Effects

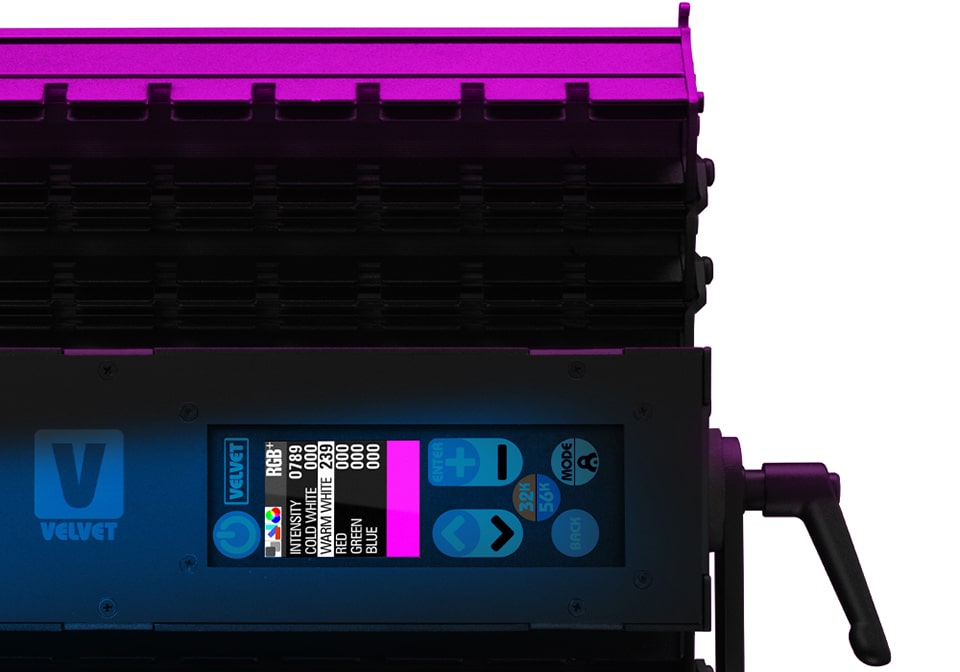

Local control
Shock proof buttons and color display
Wire control
DMX-RDM with XLR-5 In & Out connectors
Wireless control
Wi-Fi ArtNet
Color Rendering Index
95 CRI typical

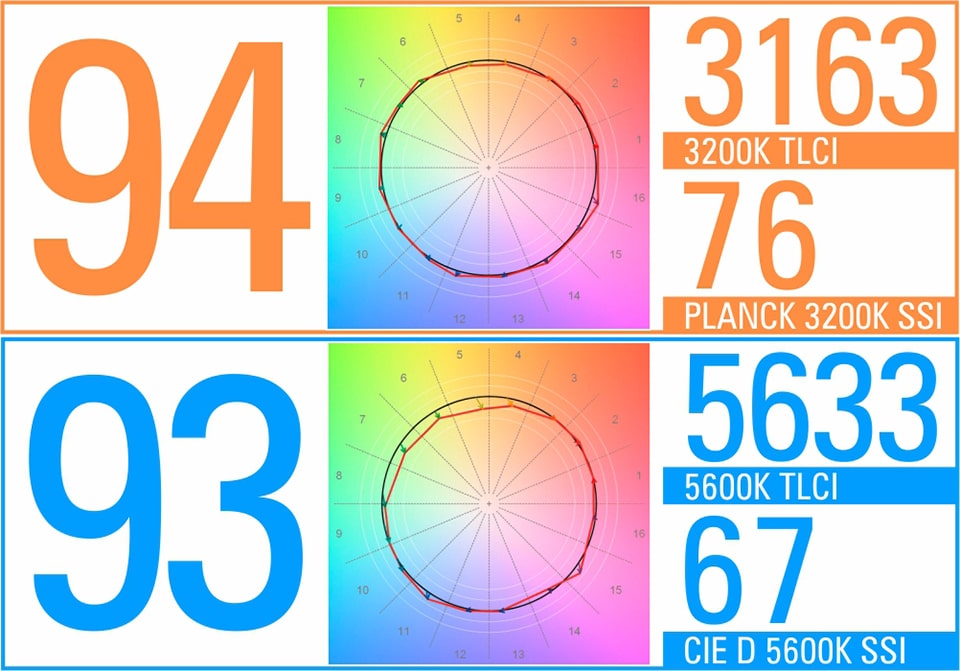

Tlci index
94 at 3163K and 93 at 5633K

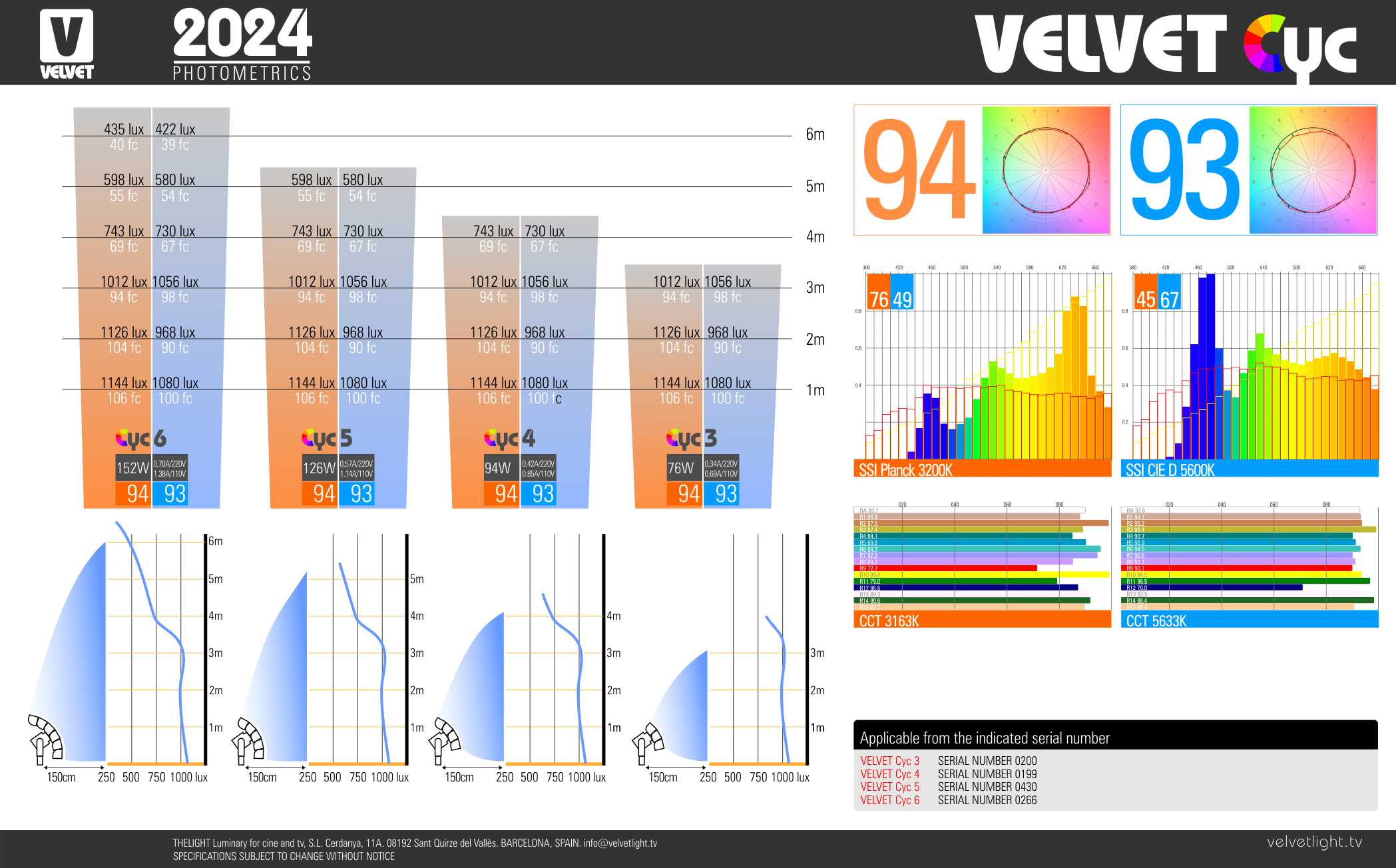

Photometrics
1080 Lux / 100 fc over a background of up to 3m / 10 feet

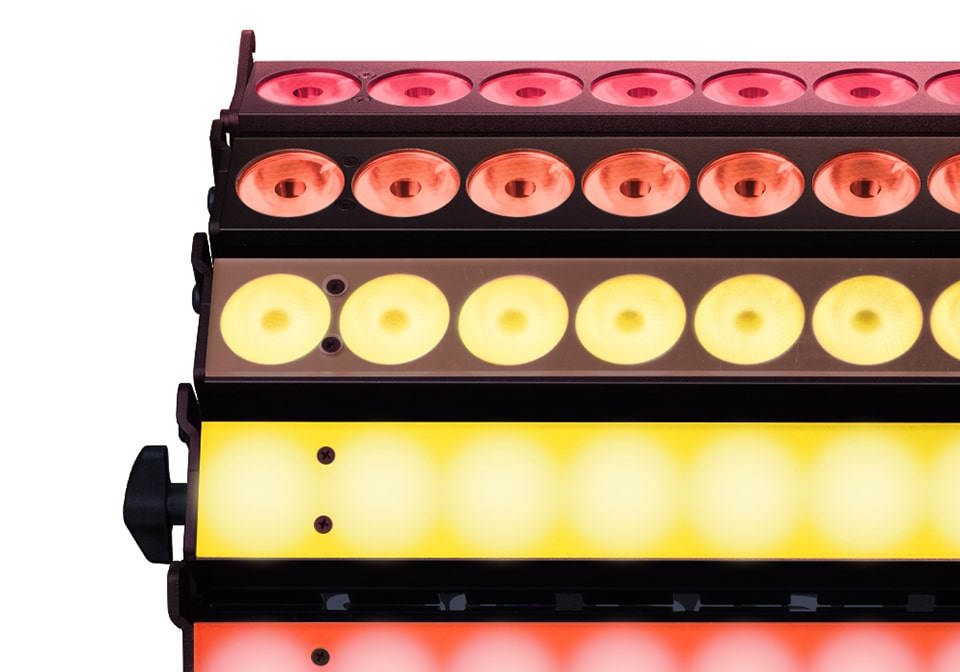

Beam angle
Asymmetrical adjustable:
Horizontal beam angle 45º / Vertical beam angle adjustable 45º to 80º
Dimensions
340x160x148mm / 13.4”x6.3”x5.8
Weight
3.7kg / 8.15 lbs. (fixture + yoke)
Power draw
76W (0.33A at 220VAC — 0.69A at110VAC)
Power supply
90-264VAC 50/60Hz
Led rated life (L70)
More than 50.000 hours L70 / More than 35.000 hours L80
Power connection
Neutrik PowerCon TRUE1 in and out connectors
Ouput frequency
16KHz flicker-free up to 2000fps
Operation temperature
From -20ºC to +40ºC

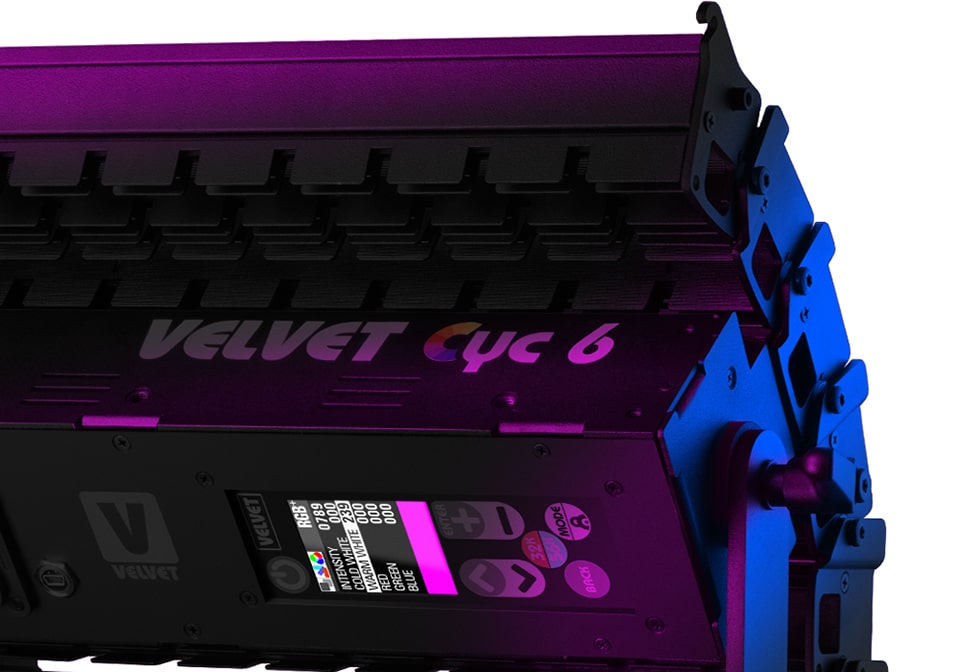

Cooling
No-noise, fan-free passive cooling
Protection
IP21 dustproof, indoor or outdoor protected use
Velvet led technology
RGBW high-power selected BIN LED core unit + multi Fresnel system
Rigging options
Aluminum yoke with 16 female combined with 28 pin, swivel ball head, pole operated yoke
Quick mounting accessories
Removable barn doors, flight case

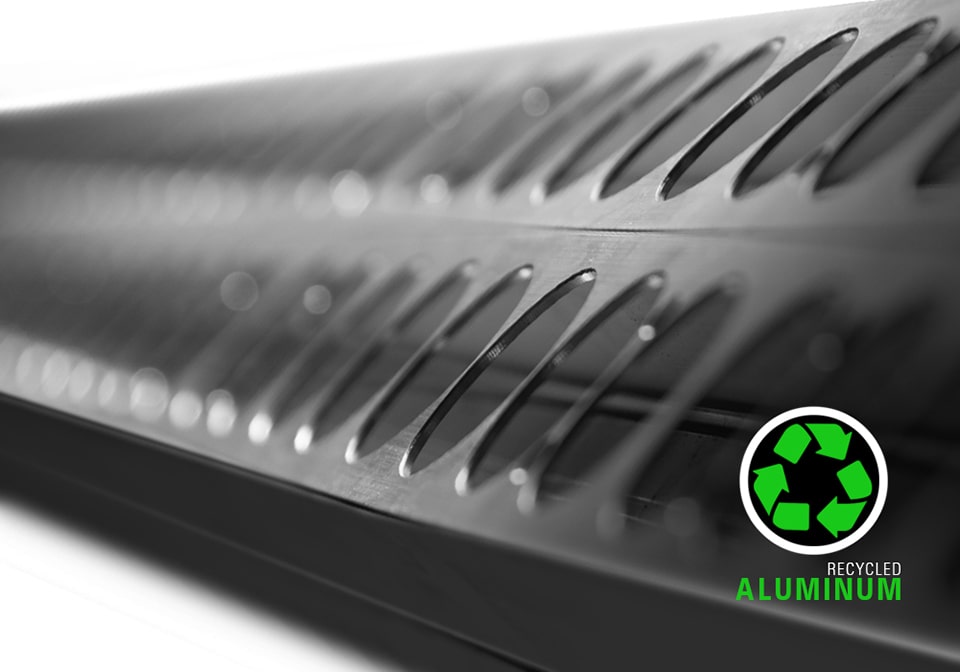

Construction & finish
Black anodized extruded aluminum and black powder coated sheet aluminum
Yoke
Ref: VYST-YK
Flat yoke without spigot for VY

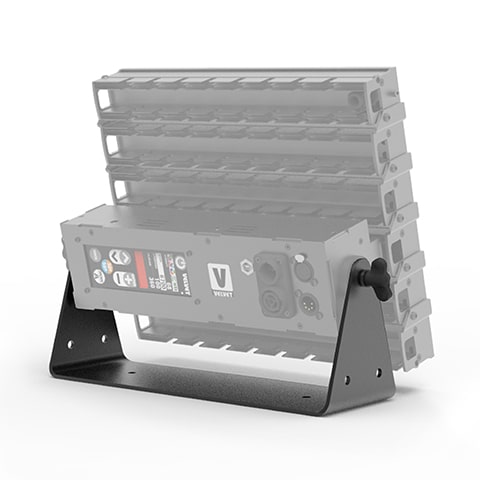

Yoke
Ref: VYST-YGK
Flat yoke for ground for VY
Pole Operated
Ref: VY456-YPO
Pole Operated yoke for VY
Safety cable
Ref: SLI-200000FS
Safety cable 1m.
Junior Pin
Ref: THE-2816-K
Kit Compact 28mm. junior pin & 16mm. baby receiver combined for flat yoke
C-clamp
Ref: V-CCLAMPK
C-clamp to hung lights

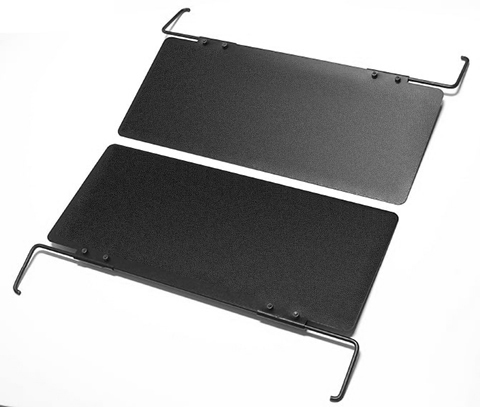

Barndoors 2x30cm
Ref: 4S-RB
2x30cm. removable barndoors for VY
Schuko AC power cable
Ref: ACC3.5M-TRUE1
Schuko AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
UK AC power cable
Ref: ACC3.5M-TRUE1UK
UK AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
American AC power cable
Ref: ACC3.5M-TRUE1A
American AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
Bare ends AC Power cable
Ref: ACC3.5M-TRUE1BE
Bare ends AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
DMX daisy-chain cable
Ref: DMX-DMX2M
DMX daisy-chain cable 2m. / 6.5ft.
DMX daisy-chain cable
Ref: DMX-DMX3M
DMX daisy-chain cable 3m. / 10ft.
DMX daisy-chain cable
Ref: DMX-DMX6M
DMX daisy-chain cable 6m. / 20ft.
DMX daisy-chain cable
Ref: DMX-DMX10M
DMX daisy-chain cable 10m. / 33ft.
DMX daisy-chain cable
Ref: DMX-DMX20M
DMX daisy- chain cable 20m. / 66 ft.
DMX splitter
Ref: THE-DMXINOUT
DMX aerial splitter In&Out
PowerCon TRUE1 cable
Ref: CAB-PWC4MTRUE
PowerCon TRUE1 daisy-chain cable 4m. / 13ft.
PowerCon TRUE1 cable
Ref: CAB-PWC2MTRUE
PowerCon TRUE1 daisy-chain cable 2m. / 6ft.
Wi-Fi router
Ref: VE-ROUTER
VELVET Wi-Fi router to remotely control Evo
